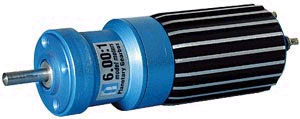

The most powerful of the 300 size Mini AC brushless motors
with neodym magnets, dural can with cooling fins, unique
solder posts for easy wiring and it is supplied with the
all dural planetary gearbox, VMGM 6:1. The motor is especially
designed for high performance models of 480-600 size up
to 1200g (42 ounces) weight. Motor is two pole, high RPM,
and is used only with the included VMGM planetary gearbox.
----- 제품사양 -----
Voltage range 6-8 cells
RPM per Volt 6,370 RPM/V
Max. Efficiency with ESC 77%
Max. Efficiency Current 14-22 A (>71%)
Max. loading 25 A / 20 s
Dimensions 24.8x65 mm (see drawing)
Shaft Diameter 4 mm
Weight 77 g
Recomended model weight 1200 g
Propeller range
6Cell prop 12"x8"
7Cell prop 11"x7"
8Cell prop 10"x6"
|
|
