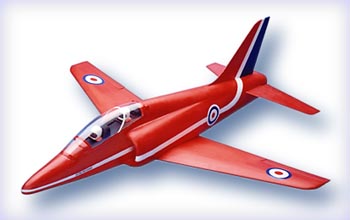

Semi scale model of the well known British jet-trainer,
which is also flown by the famous RED ARROWS. As the model
has a good glide, it can also be powered with a SPEED 400
6V. The gentle flying behaviour and good controllability
at low speeds allows easy handlaunches by means of the dummy
smokeoil tank at the fuselage bottom.
Suggested power units: Schwerdtfeger IMP
400 with SPEED 400 6V and 10 cells or WEMOTEC Minifan 480
with Plettenberg 200-20-6 and 8 cells.
Technical Data
Wingspan 850 mm, overall length: 965 mm,
wing area: 13,6 square dm.
Velocity of the air at exit: 30 to 41 m/sec.
Weight with SPEED 400 6V and 10 cells SANYO 700 AR: 760
grams. Flying time: 5 to 6 minutes.
Weight with SPEED 480 RACE or Plettenberg 200-20-6 and ten
cells 800 AR: 900 grams approx.
Flying time: 3 to 4 minutes.
Weight and flying time may change with
the size of the battery and motors used.
|
